Name: AG660B RPM CONTROLLER PWM 5-30V DC-5A
Price: 18.69 PLN
Availability: InStock

AG660B RPM CONTROLLER PWM 5-30V DC-5A

$4.66 /piece price excl. VAT

Order

Minimal order

50 pieces

Available quantity

no limits

Country

Poland

Grade

New

SKU:

AG660B

EAN:

5907621829476

Message

Phone call

AG660B RPM CONTROLLER PWM 5-30V DC-5A - description

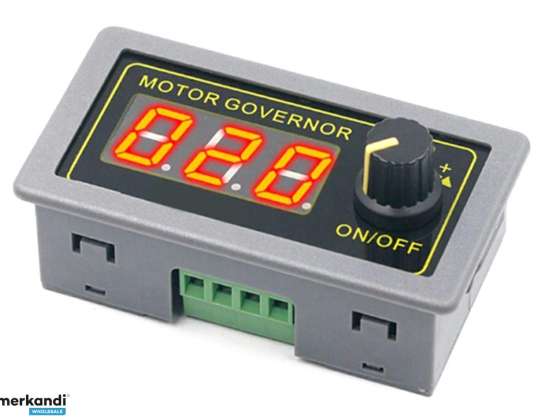

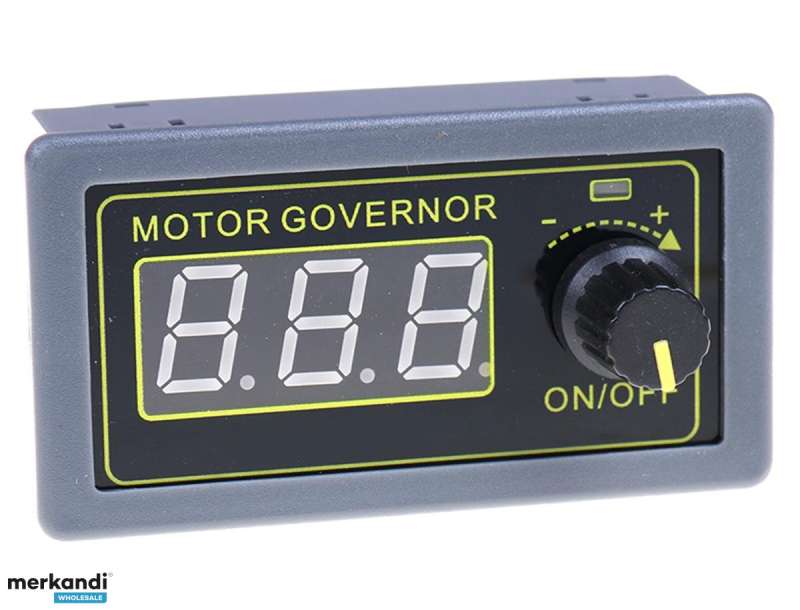

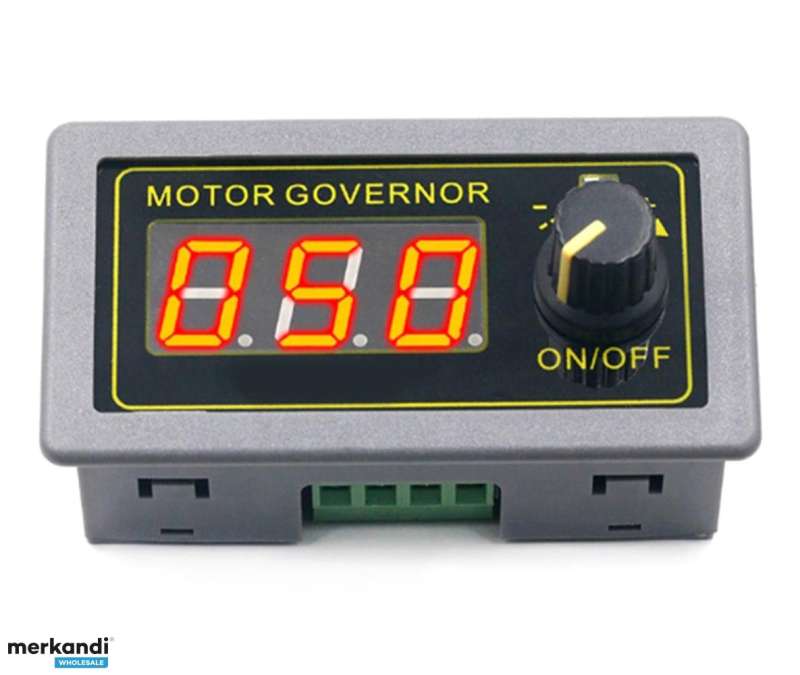

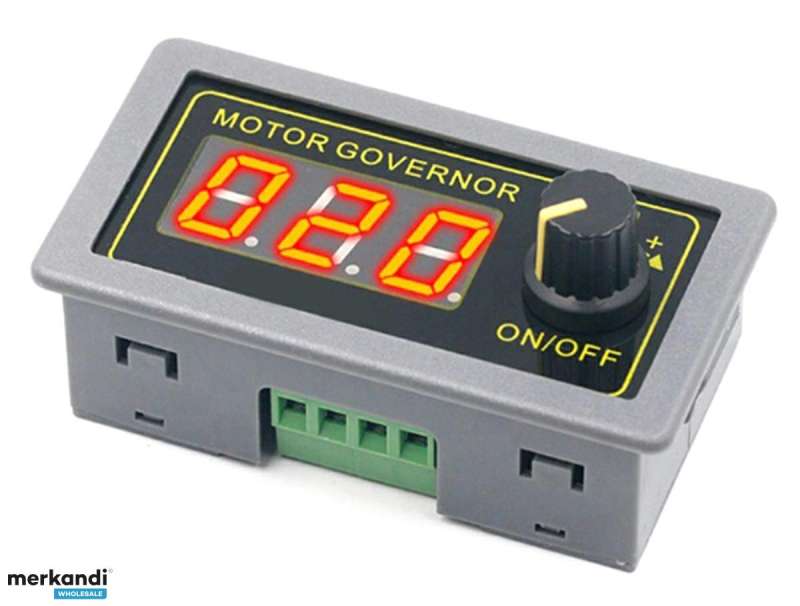

Pulse speed controller for motors (PWM). Works with DC motors with a voltage from 5V to 30V. Convenient way of regulating the working speed (potentiometer integrated with the switch). A safe system of soft-start type slowly accelerates the electric motor to the value set by the potentiometer, eliminating the risk of its damage. The compact design is equipped with a readable display with a measurement indication and a LED indicator (informing about switching the receiver on or off). Simple assembly that does not require soldering (4 wires lead out). Product features:

Pulse speed controller for electric motors (PWM).
Works with DC motors with a voltage from 5V to 30V.
Switch integrated with the potentiometer (1% step speed change).
Soft-start protection (slow acceleration of the motor to the set value).
Clear display shows the current engine speed.
LED indicator informing about turning the receiver on or off.

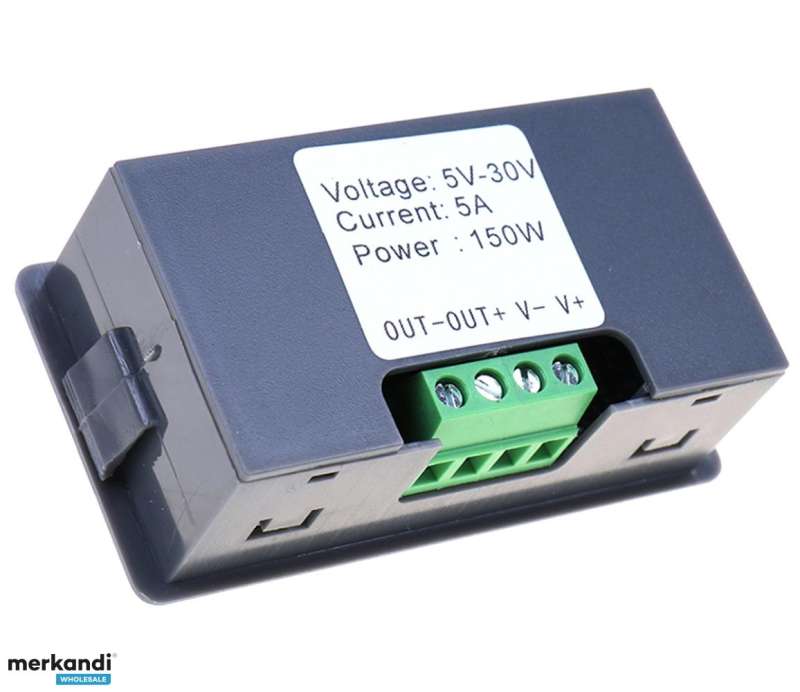

Very simple assembly (4 wires led out).

Specification:

Material: Plastic
Power supply (voltage): 5-30V DC (direct current)
Rated current: 5A
Maximum current: 15A
Maximum receiver power: 150W
Default frequency: 20KHz
Working frequency: from 1KHz to 99KHz
Accuracy: + - 1%
Switch integrated with the potentiometer
Potentiometer with built-in regulator (0-100%)
Smooth adjustment range (every 1%)
LED indicator (receiver on / off)
Clear display
Dimensions: 7.9 cm x 4.3 cm x 2.6 cm

We invite you to place an order!
