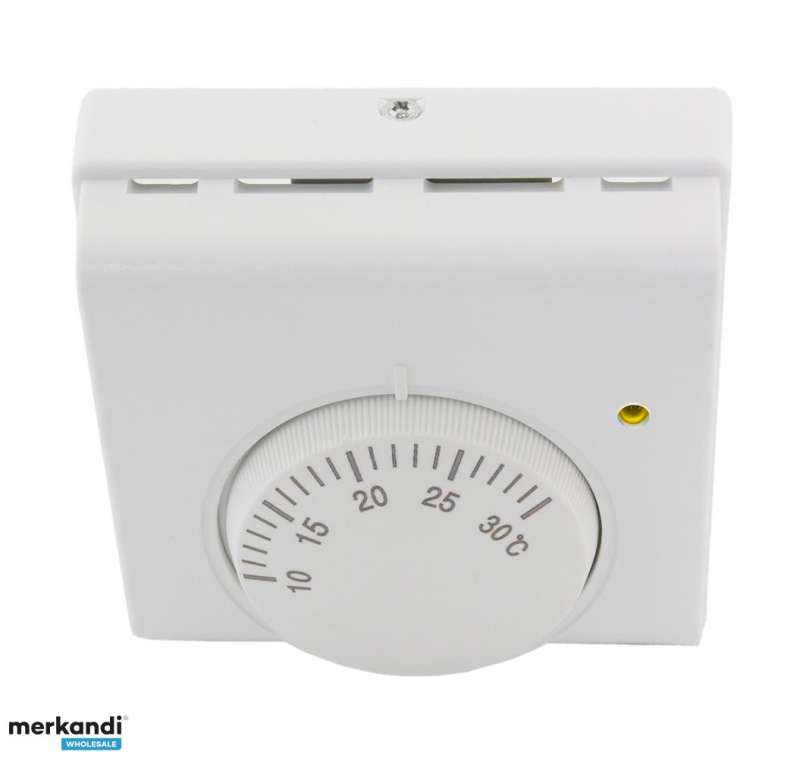

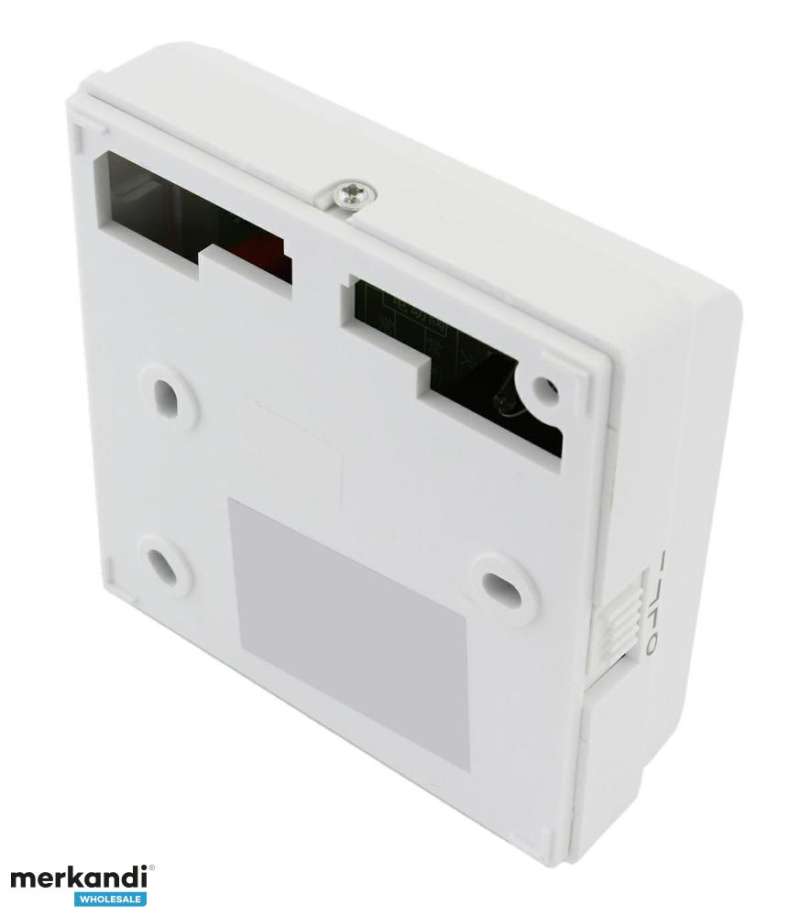

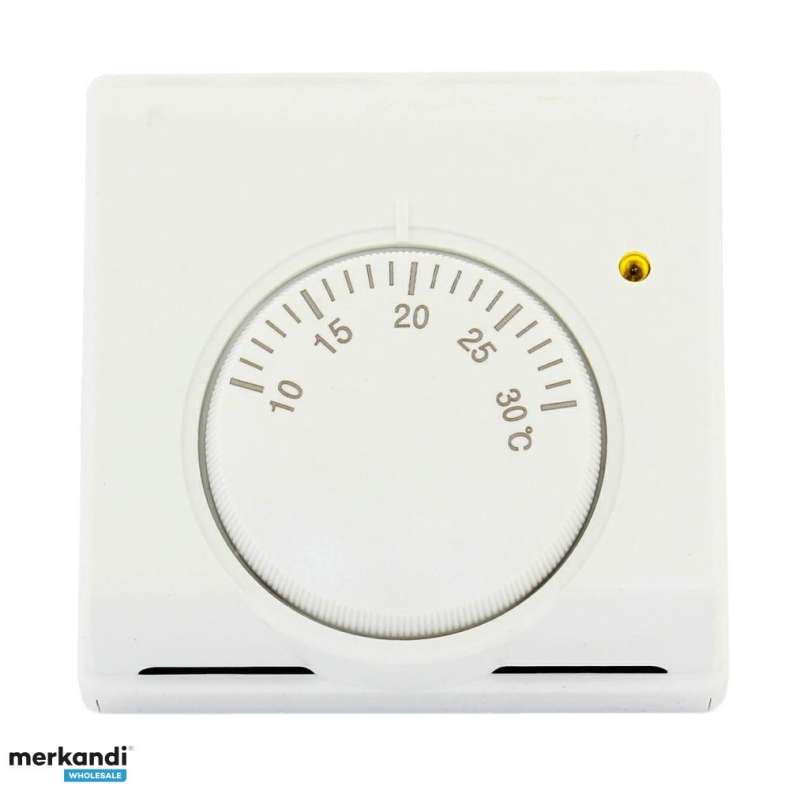

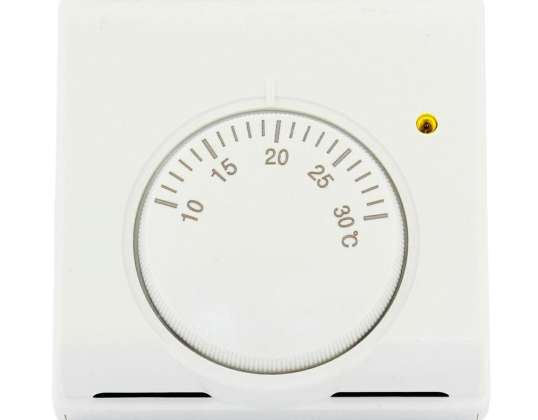

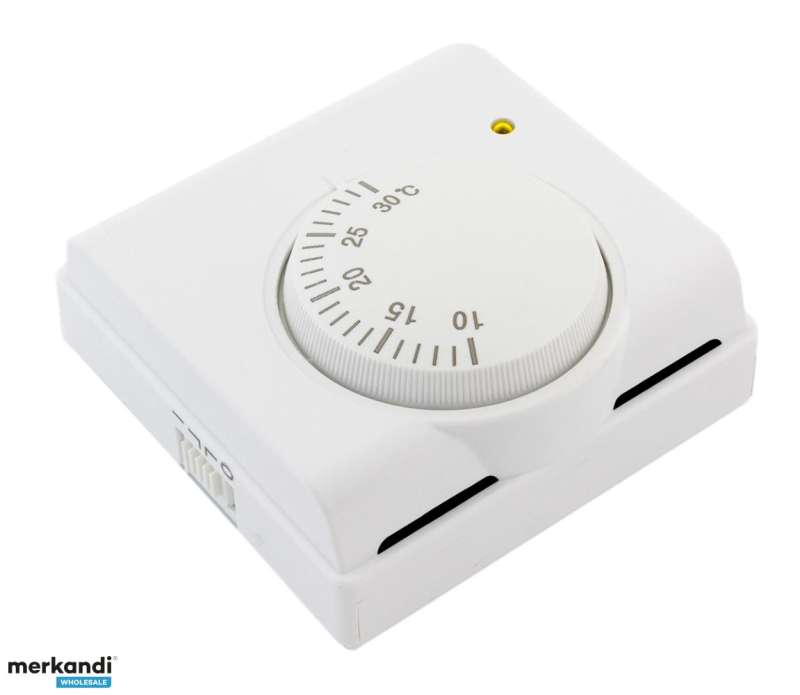

AG676 MECHANICAL ROOM THERMOSTAT - description
Room thermostat, temperature controller. Equipped with a convenient, mechanical knob for temperature control and a signaling diode (operating mode). Easy installation and ease of use (large knob). It allows you to adjust the temperature in the range from 10 degrees to 30 degrees Celsius. The thermostat allows you to control heating (switching on the circulation pump) or cooling (switching on the fan). The product is intended for internal use.
Product features:
Brand new, high quality product.
Thermostat to regulate the temperature inside the building.
It has a physical knob to adjust the temperature (10-30 degrees Celsius).
LED indicator
The ability to control the heating boiler, radiators, fans or even the air conditioner.
Simple installation and connection (diagram in the user manual).
Specification:
Material: Plastic (ABS)
Power supply (input voltage): 230V AC (no additional power adapter required)
Maximum power of the connected device: 600W
Maximum load capacity of relay (contacts): 3A
Working range: 10 to 30 degrees Celsius
Accuracy: 1 degree Celsius
Hysteresis: approx. 0.8 degrees Celsius
Lifespan: up to 100000 switches
LED indicator
Possibility to control heating or air conditioning
Physical knob for temperature control
Working temperature: 0 to 40 Celsius degree
Operating Humidity: 0% to 90%RH
Dimensions (without attachment): 8.3 cm x 8.3 cm x 3.6 cm
Mounting hole spacing: 60 mm
Maximum wire cross-section: 4 mm
Color: white
